Environment humidity 0～95%RH Sensor performance parameters
1,Product introduction

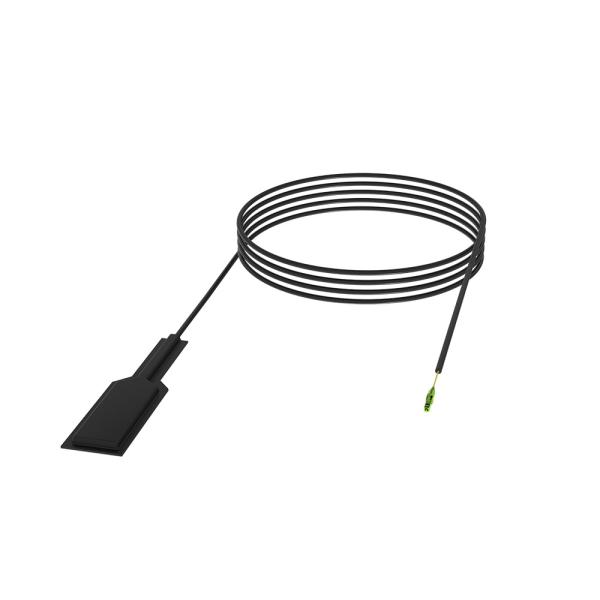

Paste the sensor as follows:
1) Pick up the sensor with both hands and align it with the installation position;
2) Hold the front part of the sensor all the time, and press the rear part of the sensor hard;
3) Release the front end of the sensor and press the front end hard to squeeze out the internal ergo glue;
4) Fix the front and back of the sensor with tape;
5) Wait about 13 minutes, the color of ergo glue will change from blue to dark green. Press down on the ergo glue next to the sensor and remove the tape if it is already very hard and no longer sticking to the glove. If it is still soft, you need to continue to wait until it becomes very hard;
6) After the installation is completed, sika521uv glue needs to be applied around the ergo glue, and there can be no exposed ergo glue.
2,Features
① Simple installation and easy maintenance
② High precision
③ Flexible and portable
④ Data is safe and reliable
3,Application field
① Blade root load measurement
② Independent pitch
③ Blade derating
④ Fatigue monitoring
⑤ Fan control
4,Performance Parameter
Demodulator performance parameters
| IP protection class | IP20 |
| Maximum working altitude | 3000m |
| Operating temperature | -20～60℃ |
| Storage temperature | -40～80℃ |
| Environment humidity | -180°～180° |
| Wind speed accuracy | 5%～9RH5% |
| Powered by | 22-26VDC |
| Power consumption | <15W |
Sensor performance parameters
| IP protection class | IP67 |
| Maximum working altitude | 3000m |
| Operating temperature | -40～50℃ |
| Storage temperature | -40～80℃ |
| Environment humidity | 0～95%RH |
| Sensor type | Fiber Bragg Grating |
| Measuring range | ±1500με |
| Grating reflectivity | -0.5g～0.5g |
| IP protection level | 50%~90% |
5,External interface of demodulator
LAN: network interface, which can be used for the connection of the device network; the network cable can be connected to the computer, and the device parameter setting, status observation and data transmission can be performed through the device client software.
CANopen: CAN interface, which transmits data externally through the CANopen protocol.
POWER: Power interface, which supplies power to the whole device.
1-16: Sensor interface, used to connect with different fiber grating sensors (the number of channels is customized according to customer requirements).
FIELDBUS: DB9 interface, supports external data transmission through Profibus, RS485, etc.
